Borewell Pipes
With huge industry experience and knowledge, we are passionately engaged in offering an extensive array of casing pipes the seamless finishing of these pipes is useful to resist electron chemical corrosion. These casing pipes are used in residential, commercial and Industrial establishments for plumbing purpose. Additionally, customers can avail these casing pipes from us in various sizes & other specifications as per customer's requirements.
Standards
Features
Applications
Agricultural fields, residential & commercial purposes for ground water extraction.
BOREWELL PIPES SPECIFICATIONS
| Property | Details |
|---|---|
| Type | Plain Ribbed |
| Grade | CM CS CD |
| Colour | Blue |
| Length | 3 meters |
| Standard | ISI |
| Slot Width |
0.75mm 1.00mm 1.50mm 2.00mm 3.00mm |
| Threads | Internal thread at one end, external thread at other end with thread production cover. |
| Depth |
Above 80m up to 153m (CM) Up to 80m (CS) Above 250m up to 450m (CD) |

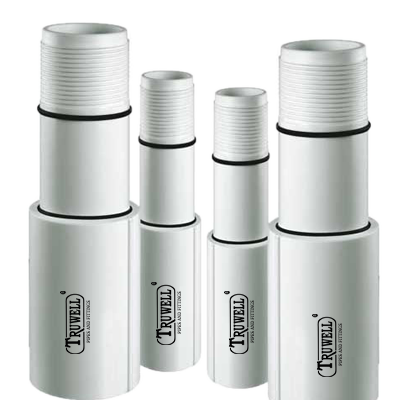

SUBMERSIBLE COLUMN PIPES
Available Sizes
1
1 1/4
1 1/2
2
2 1/2
Available Grades
Blue - Light weight (200 - 250 ft)
Red - Medium (250 - 400 ft)
Green - Heavy (400 - 650 ft)
Available Types
Bell Type
Coupler Type
